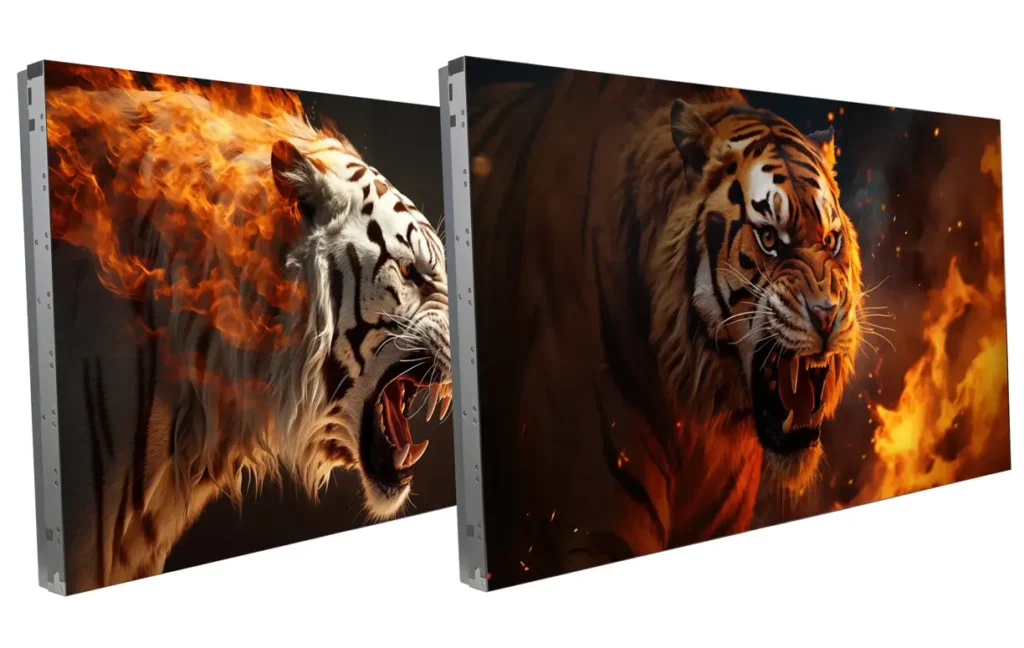

Not every control room needs a high-end video wall. Barco has refreshed its mid-range LCD portfolio with the OverView LVD-5521D and KVD-5521D — two 55-inch panels that cover the middle ground between budget displays and premium walls like UniSee II.
What the two models offer
Both panels are 55-inch LCD tiles with a typical brightness of 500 cd/m², built for continuous tiled video wall operation. They differ mainly in the bezel:
- OverView LVD-5521D — Extreme Narrow Bezel generation with a 1.8 mm gap, for walls where the seam should almost disappear
- OverView KVD-5521D — Ultra Narrow Bezel generation at 3.5 mm, with roughly 20 % lower energy consumption than its predecessor
Both integrate Barco’s Sense X real-time calibration. Integrated brightness and colour sensors keep the entire wall balanced instead of letting individual tiles drift apart over the years — which is the practical difference between a video wall and a set of monitors placed next to each other.
When mid-range is the right choice
Brightness and bezel width are not quality grades — they are planning parameters. A 500 cd/m² panel is sufficient wherever ambient light is controlled and viewing distances are moderate: technical monitoring, process visualisation, network and building operations. In those rooms, the money is better spent on the KVM architecture and the operator workstations than on display headroom nobody sees.
The bezel decision follows the content. Continuous situation maps and video benefit from the 1.8 mm gap of the LVD; segmented layouts, where each tile shows its own source, tolerate 3.5 mm without any loss in readability.
When to look at the premium class instead
If the room has high ambient light, if operators sit close to the wall, or if a genuinely seamless image is required, Barco UniSee II is the better answer. Where pixel pitch, size or shape go beyond what LCD can do, a direct-view LED wall comes into play. And for existing rear-projection installations, an RGB laser upgrade can be the more economical route.
The wall is one part of the system
controlrooms GmbH plans the display as part of the whole: sources, controller, KVM architecture, operator workstations, room layout and service. A well-chosen mid-range wall in a properly planned room outperforms a premium wall in a poorly planned one — and it usually costs less to run.
Frequently asked questions about mid-range LCD video walls
What is the difference between the LVD-5521D and the KVD-5521D?
Mainly the bezel. The LVD-5521D belongs to the Extreme Narrow Bezel generation with a 1.8 mm gap, the KVD-5521D to the Ultra Narrow Bezel generation at 3.5 mm. The KVD also consumes about 20 % less energy than its predecessor.
Is 500 cd/m² bright enough for a control room?
In most cases, yes. Control rooms usually have controlled lighting. Higher brightness becomes relevant with strong daylight, glass fronts or short viewing distances — that is a room question, not a display question.
Can mid-range and premium panels be mixed in one wall?
Not within the same wall surface. Bezel width, brightness and calibration behaviour must match, otherwise the image no longer reads as one. Different classes in separate wall sections of one room are possible.
What does Sense X actually do?
Integrated sensors measure brightness and colour of each tile and correct them in real time. Without that, tiles drift apart over years of operation and the wall becomes visibly uneven.
Which class fits your room?
We assess room, light, viewing distances and content before recommending a display class. Write to office@controlrooms.at or call +43 2742 43570.
